Artwork Guidelines

Artwork Guidelines and Formatsink_1200x1600

Artwork is produced in Adobe Illustrator. For production purposes, we prefer VECTOR artwork whenever possible.

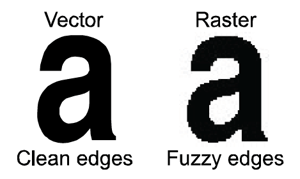

A vector image is lines or shapes mapped out mathematically rather than pixel-based, referred to as raster which when scaled larger becomes fuzzy. The advantage of vector-based images is that they never lose their quality despite the size of the image.

Preferred File Formats

Adobe Illustrator CC (.ai, .eps, .ps, .pdf)
PhotoShop CC (.psd)

vector_raster









Other File Formats

Note files received in these formats may require redrawing of the artwork.
- CorelDRAW X8 (.cdr)
- AutoCad
- All bitmap images including .tiff, .bmp, .jpg, .gif
- Microsoft Office

Customer Artwork Checklist

- List all part dimensions (overall size, radius corners, holes, cutouts, etc).
- Convert fonts to line art (curves, paths, outlines) to avoid any font discrepancies.
- Send all fonts if you are unable to convert them to curves or outlines.
- Specify required PMS colors and their locations. If you do not have a specific PMS color, a McLoone standard will be used.
- If white prints on the label, indicate the areas by either assigning a spot color or specifying the exact locations
- Minimum line thickness .007”
- Minimum thickness of graphic trapping another color .015”
- Graphics kept a minimum of .045” from cut edges
- Outer border minimum of .045”
- Doming Requirements:
   - Minimum radius for both inside and outside curves is .062”
   - On Special Shapes (anything more complex than 90 degree angles) The minimum convex (outside) radius is .125'. The minimum concave (inside) radius is .1875'.
   - Minimum width of part is .156”
- Image must be saved at 100% scale.
- Photoshop files – retain layers and do not flatten image (if possible).
- Color and grayscale raster images (.jpg, .tif, .bmp, .gif) at 100% size should be at least 200 ppi. Black & white raster images should be 1200 ppi.
- Document color mode and art saved as CMYK. Note: RGB images will be converted to CMYK.
- All images will be preflighted and reviewed by our Art Department before deemed usable.
